Applications:
Package Test Machines

Velocity/Energy Calibration

Product Performance Testing




Models:
VS200:- Single pass pre impact velocity sensor

VS300: - Dual pass, pre and rebound velocity
sensor

PCVS: - PC ISA Slot VS 200/300 electronics sensor
                                                                                a technical leader since 1983

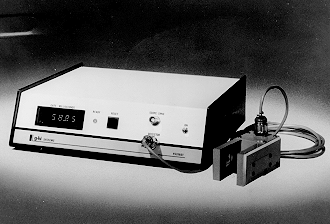

Impact Velocity Sensor:
Impact Velocity - Both Pre and Post
Impact Energy & Loss
Materials Restitution

Features:

Non-Contacting Optical Sensor:
Does not interfere with test machine, compensates
for machine friction and air drag.

Calibrated Optical Head:

Calibration Samples No Longer Required:
Since the velocity of each test is recorded,
expensive calibration samples and procedures are
redundant.

System Accuracy:
Better than 1% when using recommended target flag
widths.

Scope Sync Output:
Provides trigger for data recording systems.
Establishes data zero.

Digital Electronics:
All solid state with quartz crystal control and LED
display. Accuracy is built in, no calibration required.

Full 5 Digit Display:
Displays time in milliseconds. Resolves time to 0.01
milliseconds.
