| Explosion Proof Antenna Coupler A solution for problems associated with radios in hazardous areas is Ventek's Explosion Proof Antenna Coupler. |
| Predictive and Preventative Maintenance Monitor your factory floor health and predict failure before it occurs. Conquer untimely shutdowns while saving money and time. e-GuardTM provides a payback that is almost instant! |

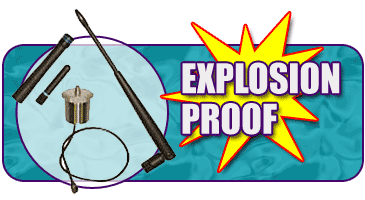

| An explosion proof box is metallic and will not allow a radio signal to penetrate the enclosure (Faraday Cage). It is also not acceptable to have a bare antenna run direct from an explosion proof enclosure into the hazardous area without approved protection. VenTek has developed a UL recognized flameproof antenna coupler with a built in barrier to prevent a spark or electrical by-pass to the atmosphere. Patented under U.S. Patent 7,057,577. |
| e-GuardTM Wireless Sensors monitor production equipment and installs in minutes. VenTek sensors include: Pressure Sensors Temperature Sensors Current Sensing Sensors Vibration/Tilt Sensors Humidity Sensors e-GuardTM Wireless Sensors provide a cost effective means to monitor inexpensive equipment that will cause expensive shutdowns. |
| Features Short Circuit Protection - Includes the required 1500 volt DC dielectric circuit as required for usage in a hazardous area environment. No Sealing Fitting Required - Fitting is pre-approved for hazardous locations and can be installed with no potting compounds and a simple wrench. Eliminates the need for costly seal fittings, and reduces the chance of error associated with field installed sealing practices. Corrosion Resistant - 300 series stainless steel protects the fitting from corrosive environments, sealing fittings are typically constructed of aluminum or galvanized steel, neither being well suited for the process industry. Environmental Protection - All required circuitry is recessed into fitting and potted against harsh environments; this is impossible with conventional sealing methods. Interchangeability - Provides a method to allow for changing antennas (this could be required if damage to the antenna was to occur), the conventional method would require a new antenna and sealing fitting. |

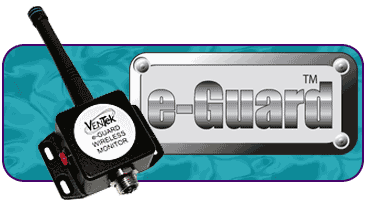

| VenTek’s Wireless Monitor provides a simple and cost effective means for monitoring sensor inputs through V- Bus™. It is compatible with all VenTek sensors including: Pressure, Temperature, Current, Vibration and Humidity. Data packets are transmitted at 418 MHz to receivers or repeaters up to 600 feet away. With Repeaters, signals can reach over five miles. All sensors and receivers are available in NEMA 4, 4X or NEMA 7 enclosures. Applications Include: Equipment monitoring -Predictive and Preventative Maintenance Sample Process Data - Temporary Process Monitoring Oil field – Monitor Equipment and Processes VenTek offers a simple software solution to monitor all of the sensors on any Windows Based PC system, utilizing either our OPC/DDE driver through serial or our Manager based receiver with TCP/IP through Serial or 10/100 Ethernet porting. |
| For additional info call 386-801-4290 or email, sales@quadcomm.net |
